Saudi Aramco Jafurah Gas Compression Plant Sunshade
- Client: Saudi Aramco
- Project Name: Phase-II, PKG-31, Jafurah Gas Compression Plant (J-GCP) - GCP-1, 4 & 7 Sunshade
- Location: Jafurah, Saudi Arabia
- Space Frame Area: 634.38 sqm × 3 structures
- Scope: Design, manufacture, supply & installation

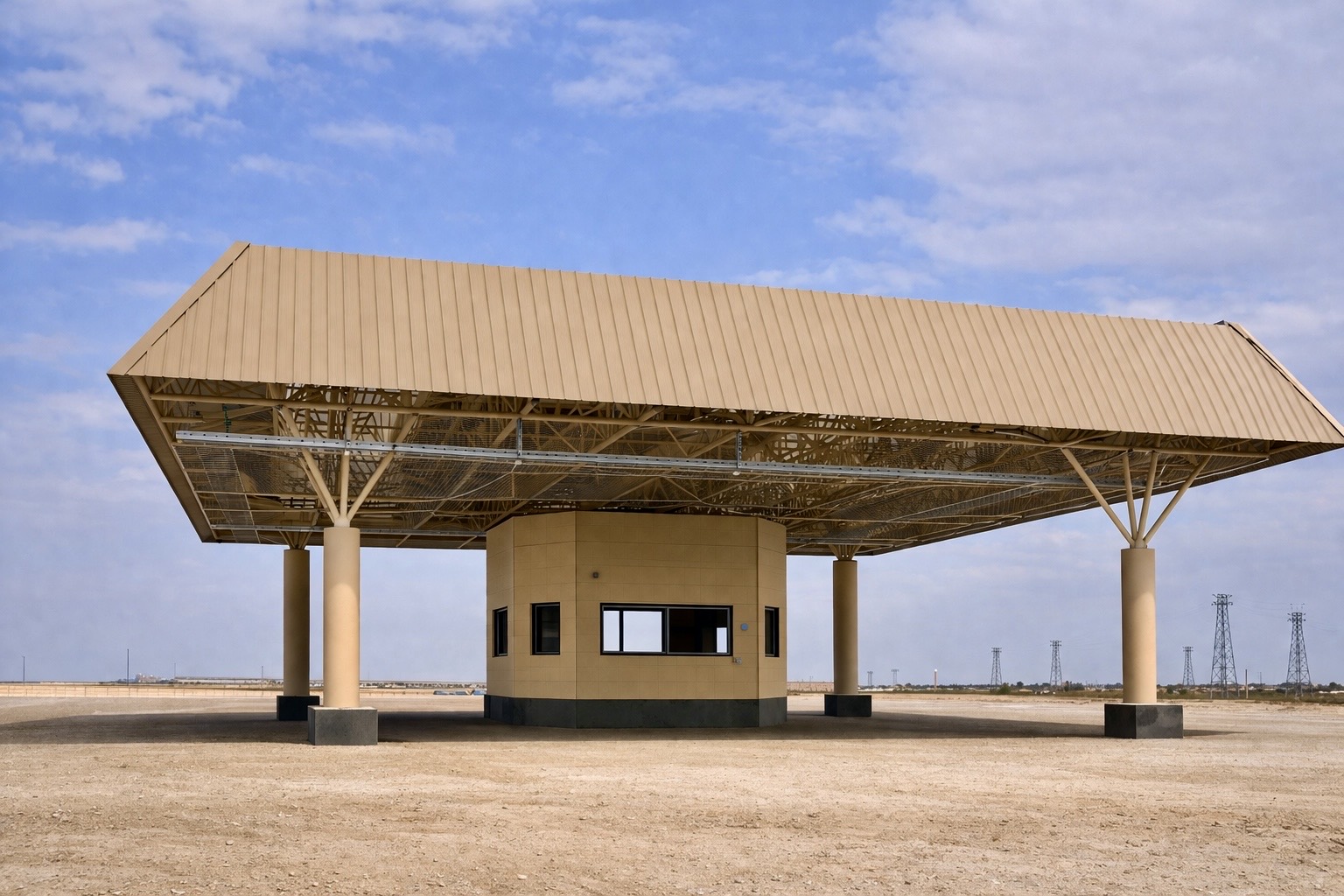

Triocon designed, manufactured, supplied and installed three space frame sunshades for Saudi Aramco’s Jafurah Gas Compression Plant in Saudi Arabia. The Phase-II, PKG-31 package covers J-GCP units GCP-1, 4 and 7, with 634.38 m² of space framing per structure.

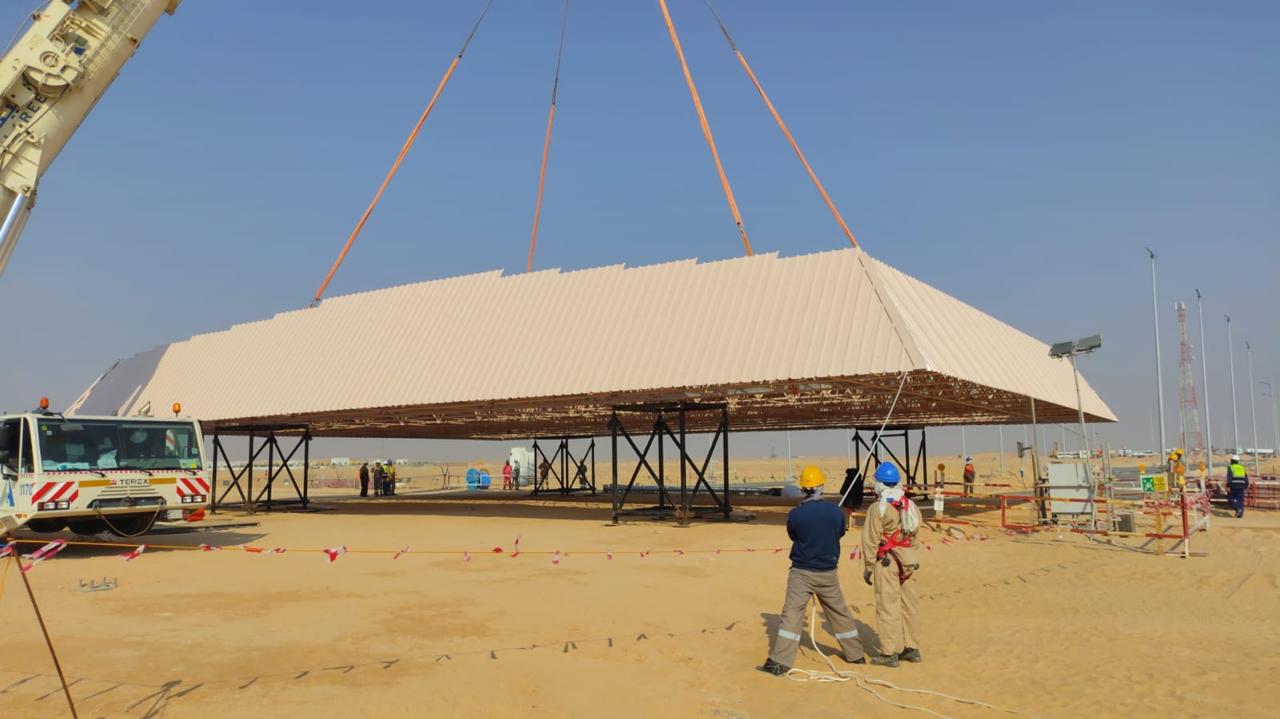

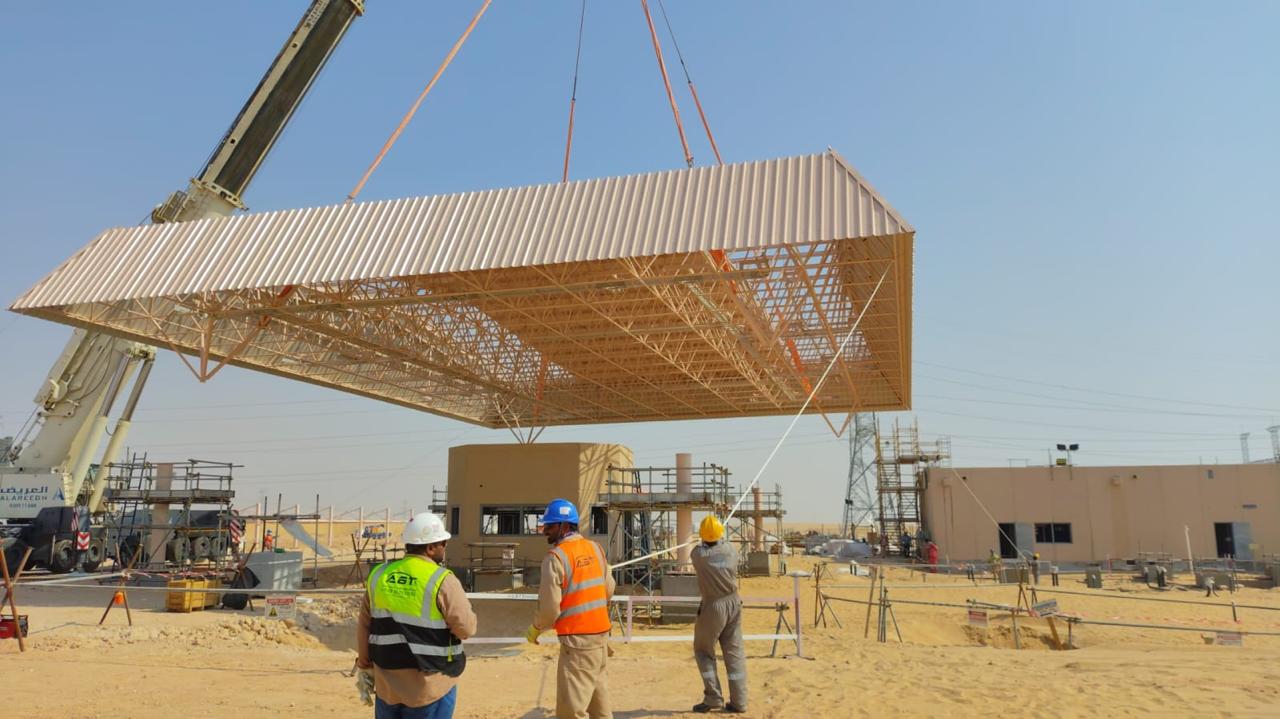

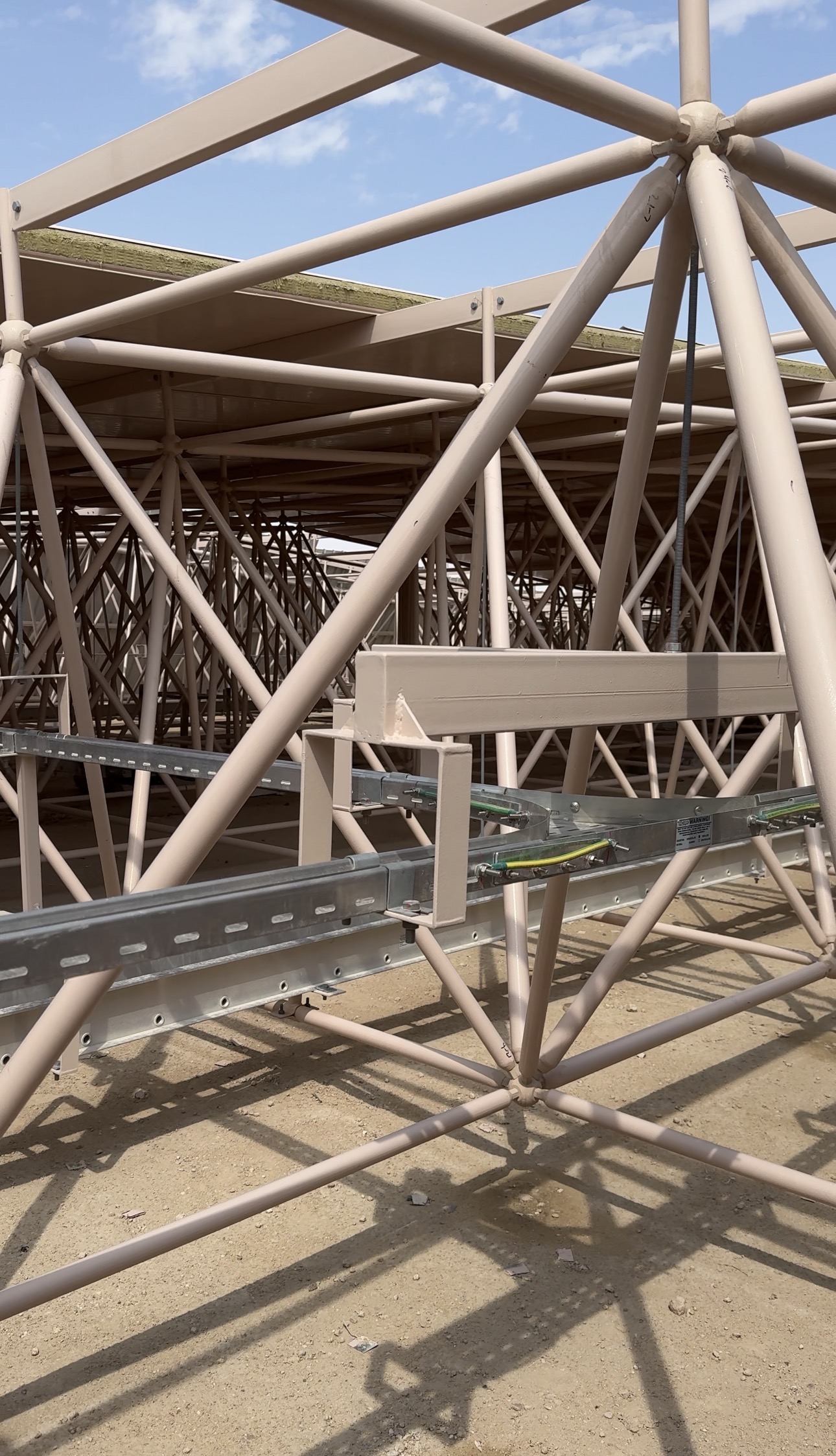

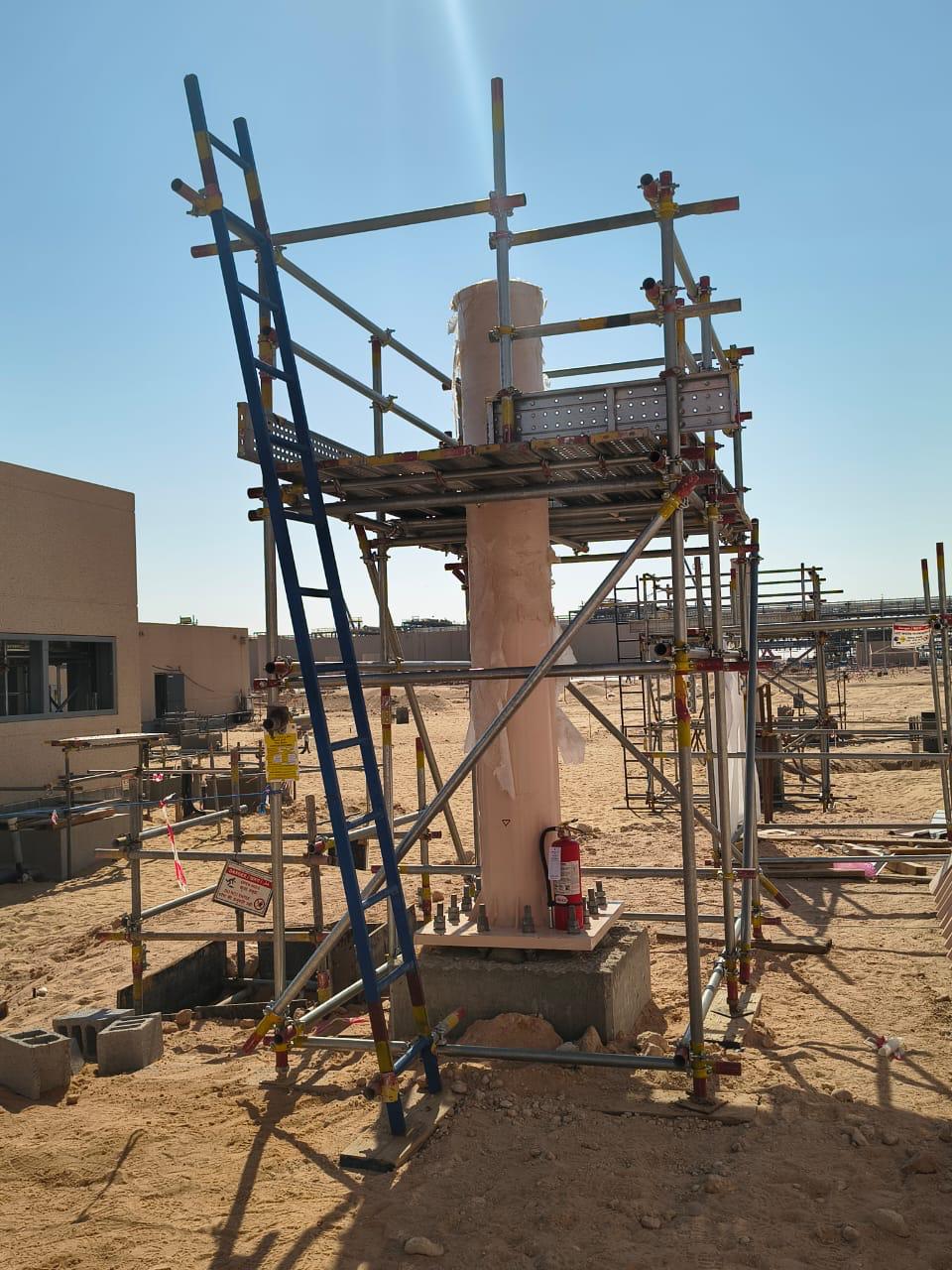

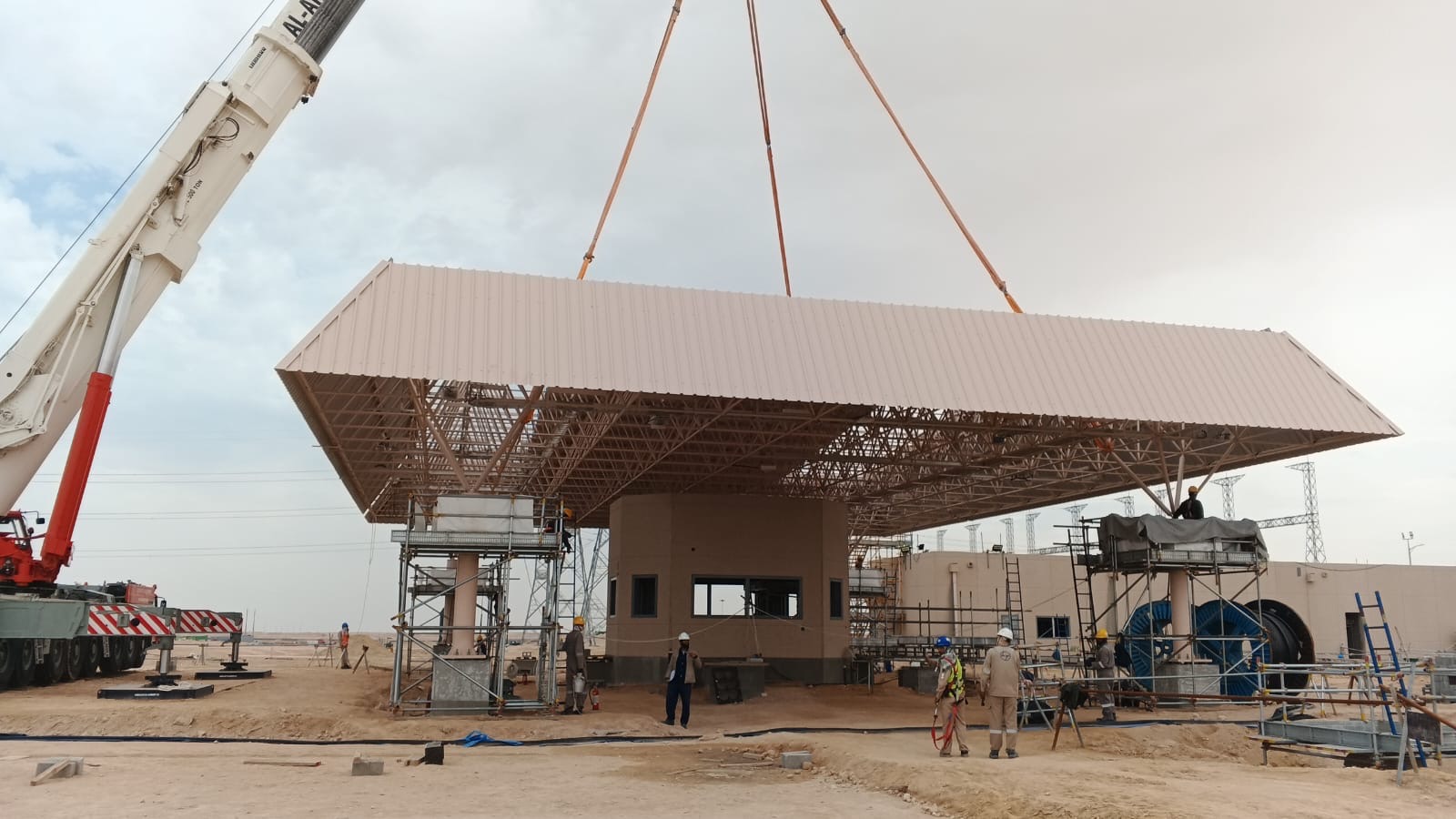

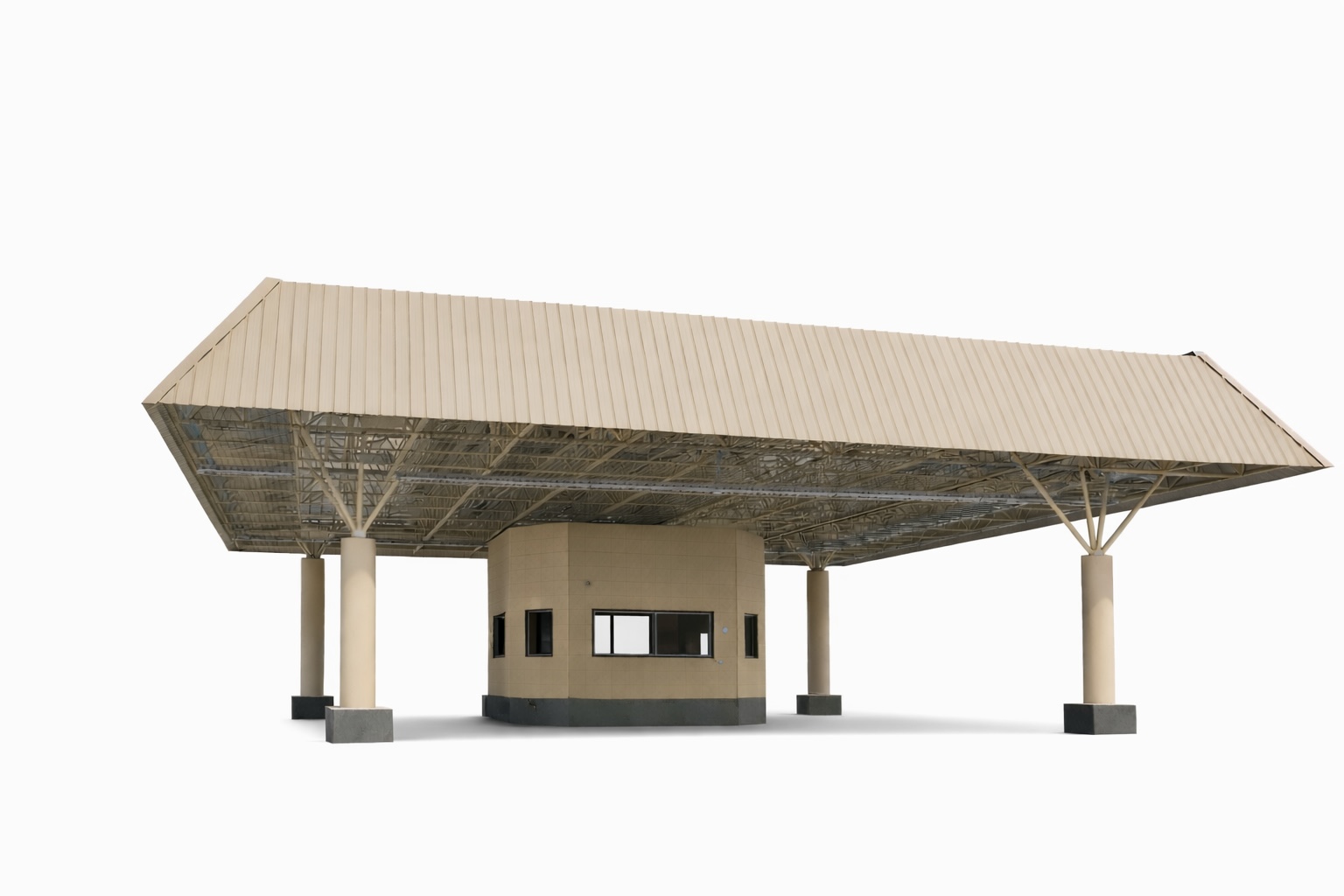

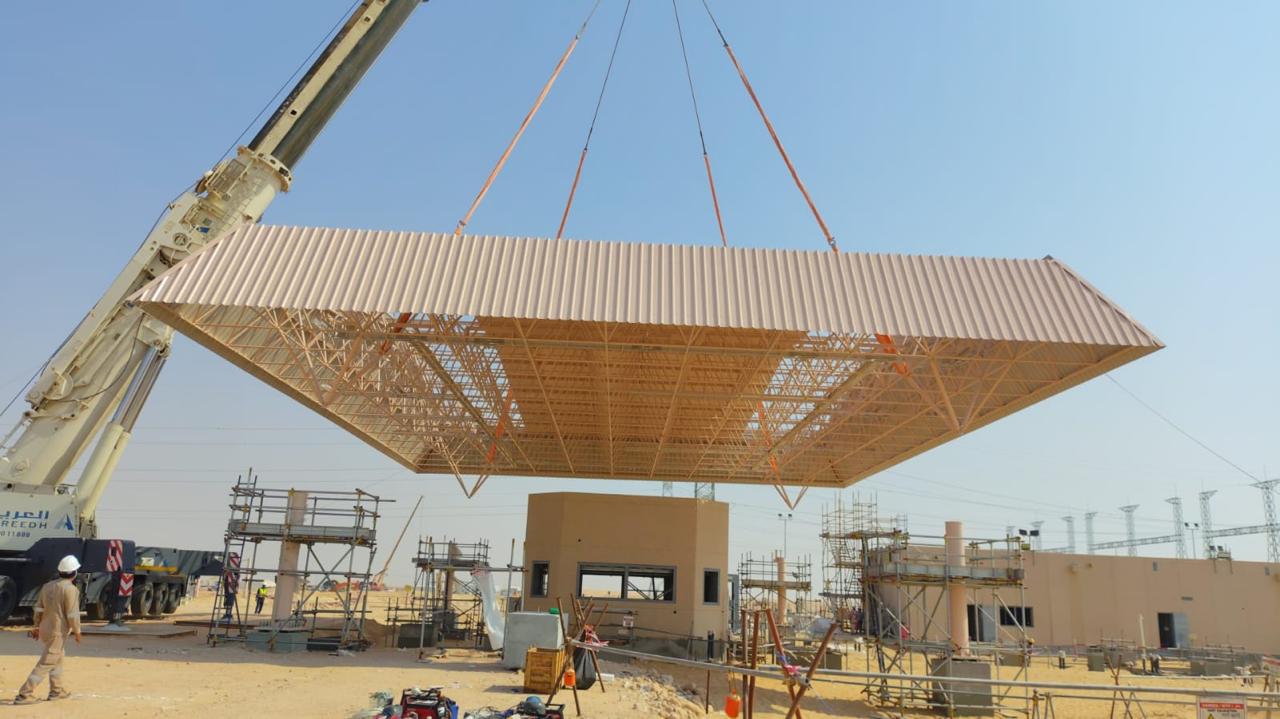

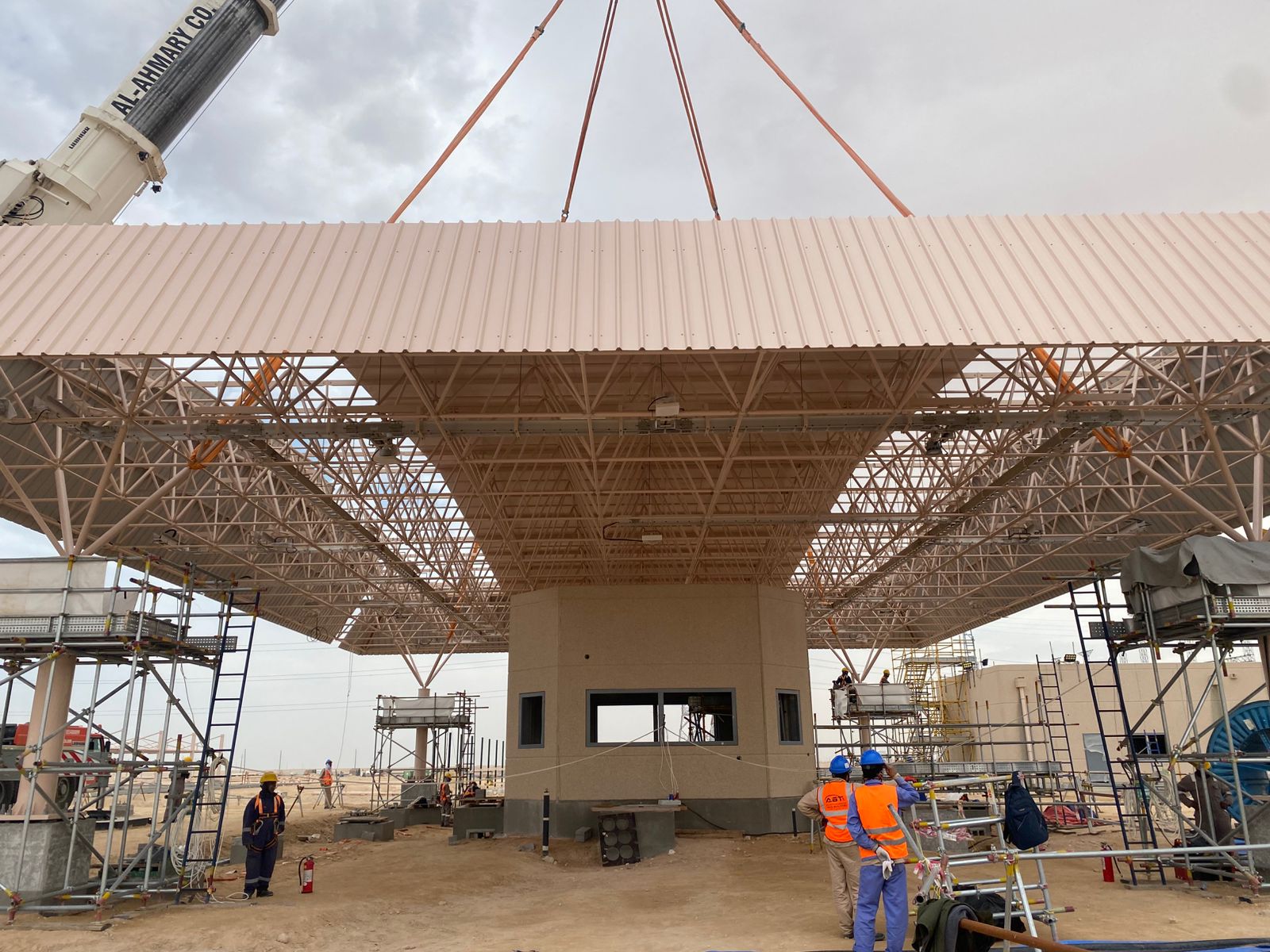

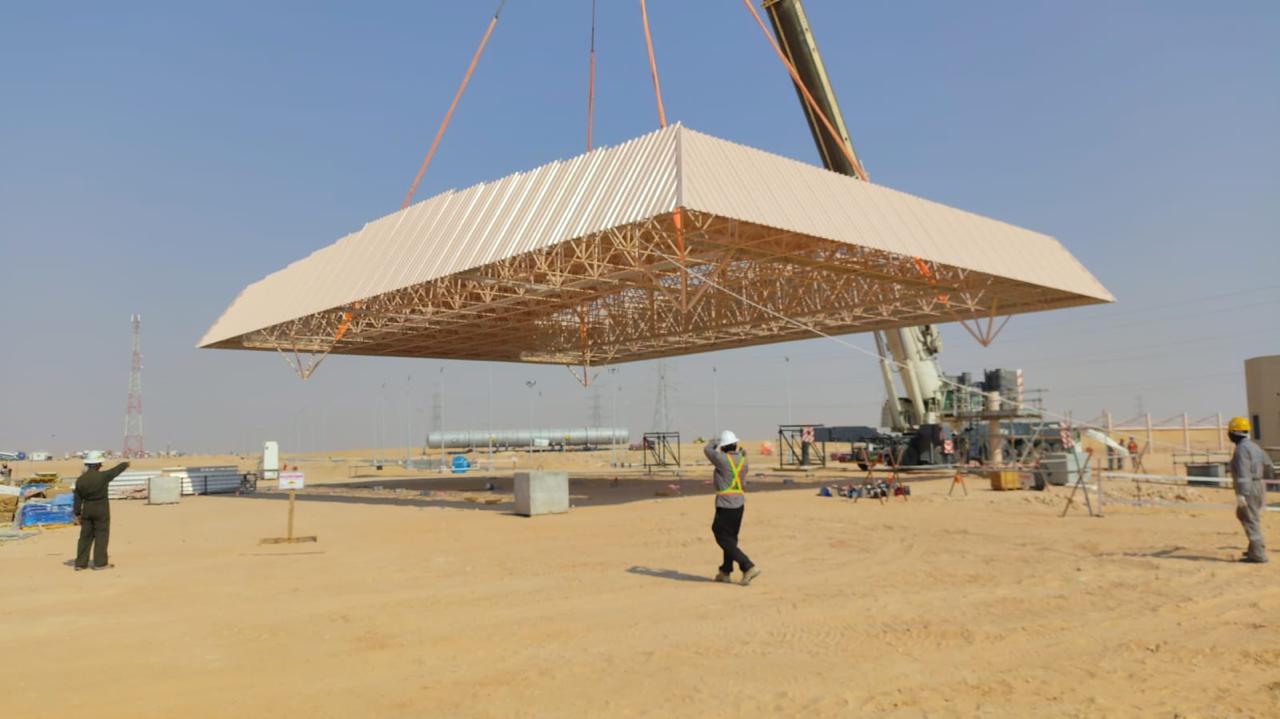

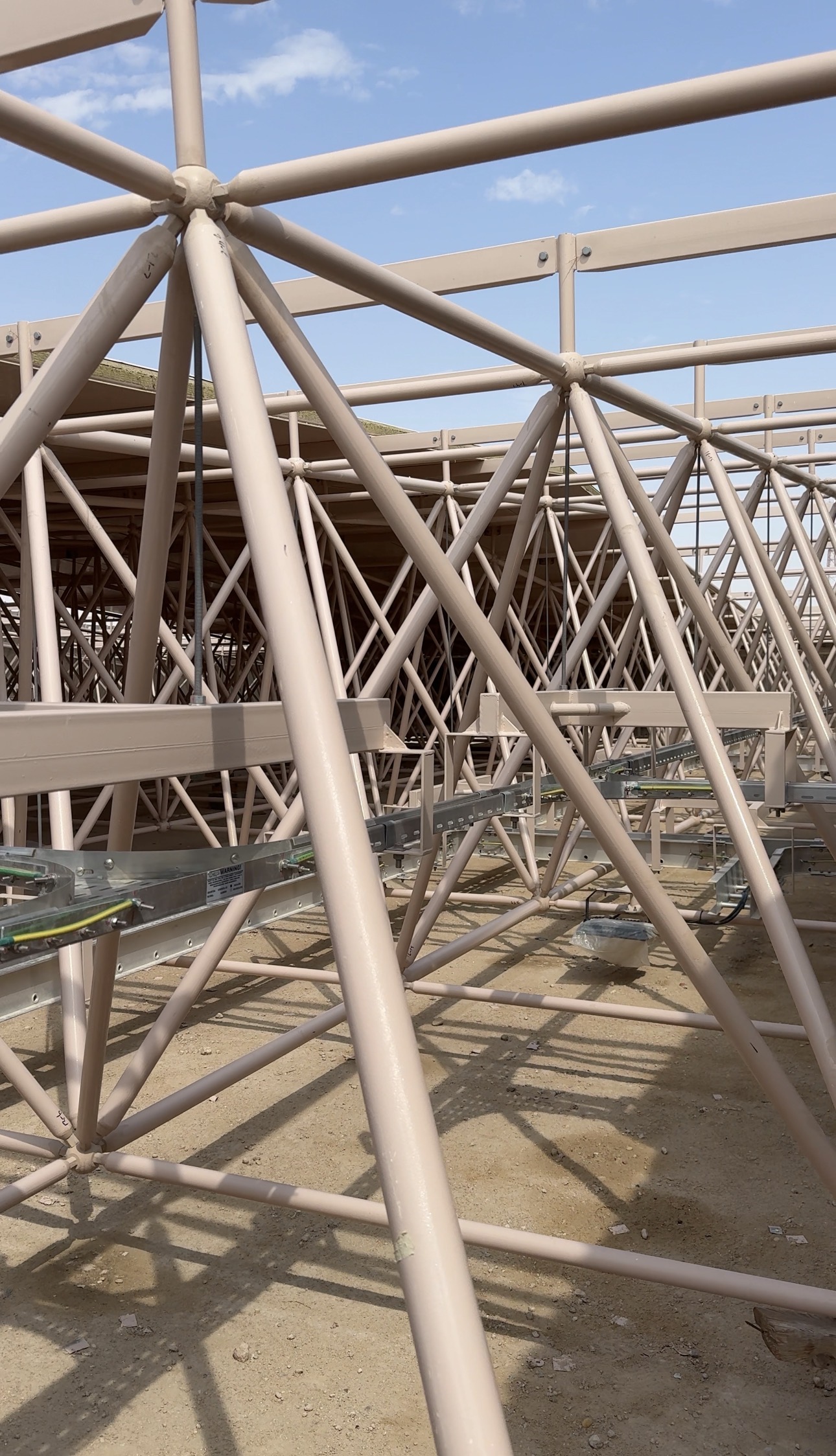

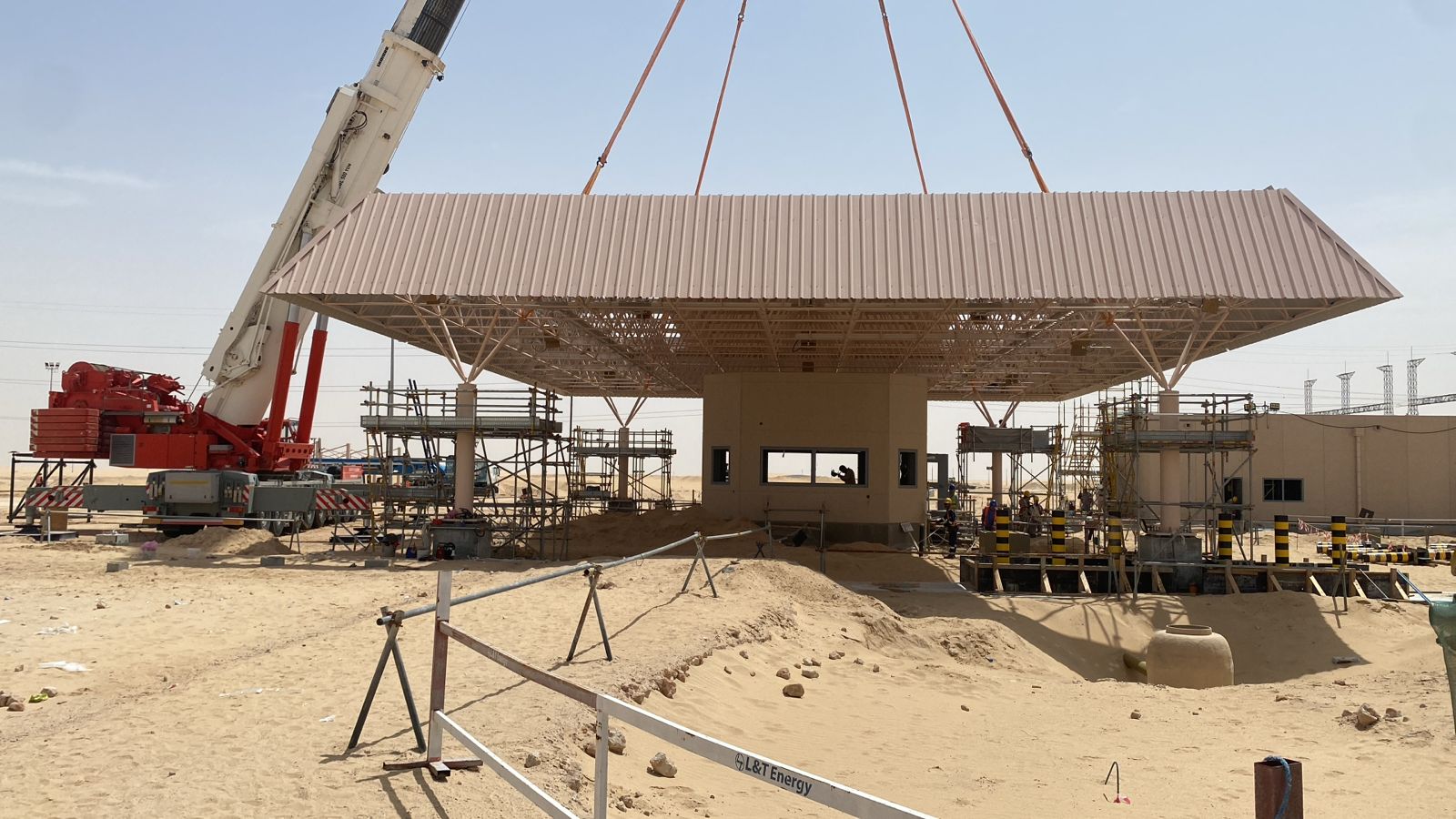

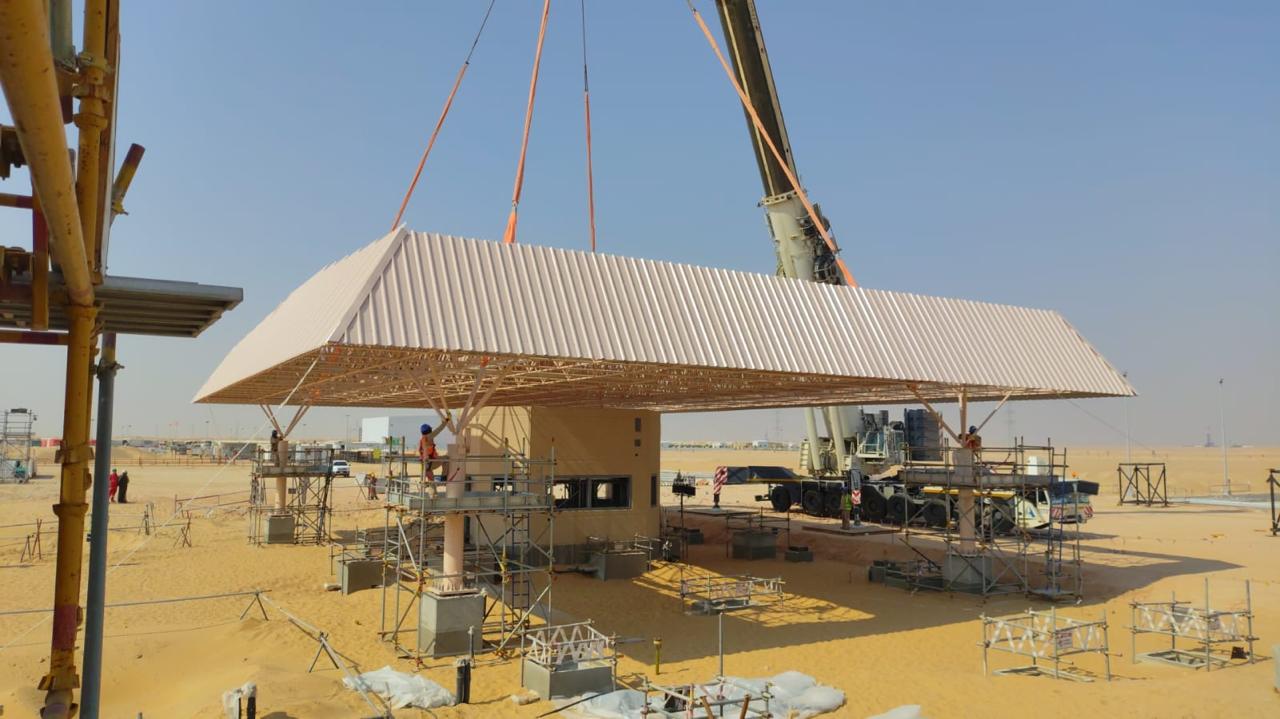

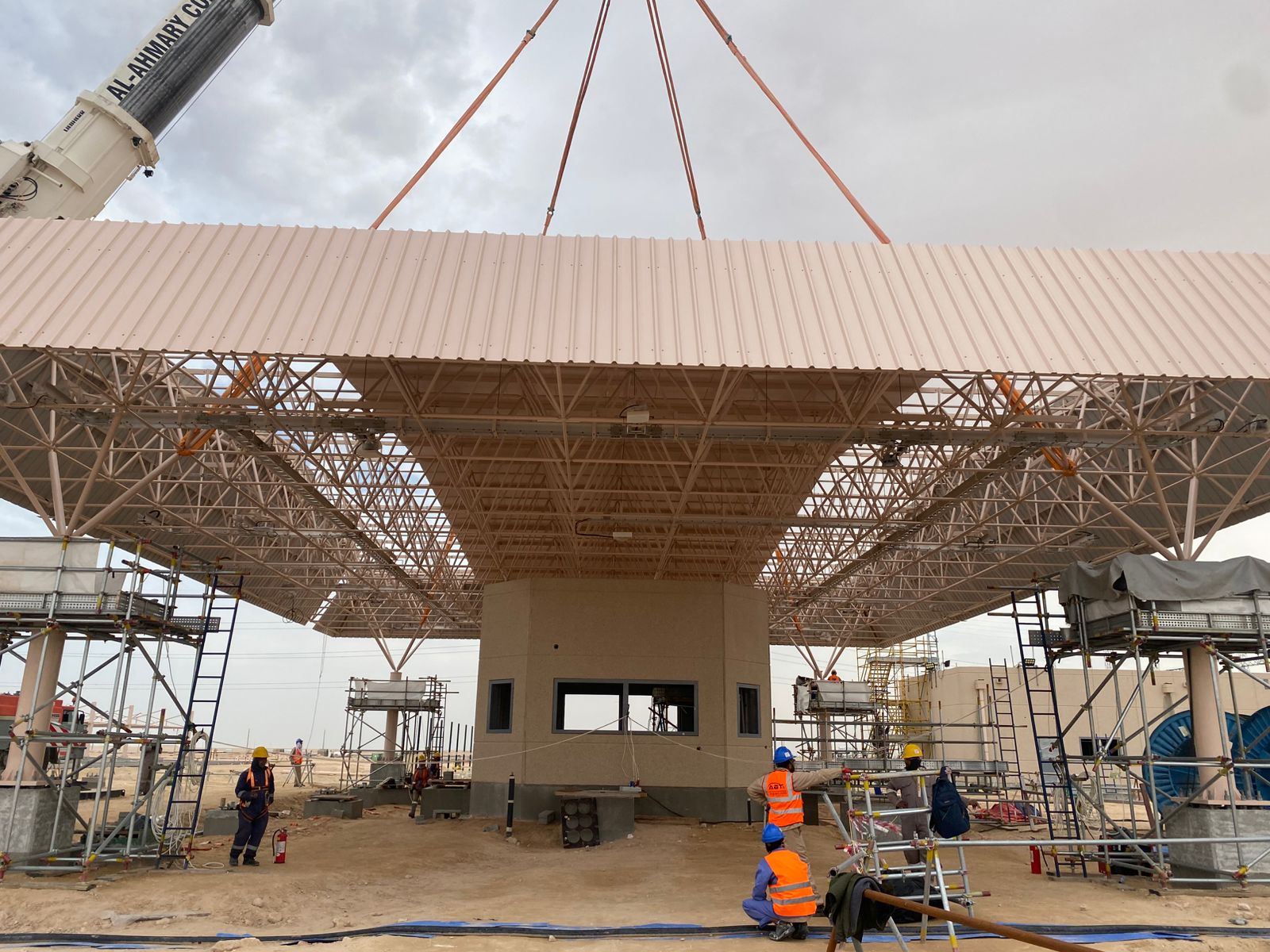

The canopies use Triocon’s bolted solid ball-joint hollow-tube system. They were fabricated off-site and craned into position, with cable trays, lighting fixtures and bird mesh integrated into each structure. The photographs and video below show the space frames and installation work.
For a related industrial application, see the Rabigh desalination plant gatehouse sunshades.
